Volvo VOE938661 Eternity/2 wholesale
Part Name: VOE938661 Hose assembly
KDSORT: 290, 370, 380, 230, 270, 390, 220, 350, 280, 8024, 340, 240, 260
UE: U
ANT1: 1
ANT2: 1
Hose Recipe Asmoverall Length MM: 1000
Hose Recipe Asmoverall Length Inch: 39.37
Hose Recipe Asmoverall Length ToL MM: +/- 1%
Hose Recipe Asmoverall Length ToL inch: +/- 1%
Hose Recipe Fitting OrIentationtol Tol Degrees: +/- 5 degrees
Hose Recipe Hydraulic Hose Standard: EN (474-1) (5.18.13 Hydraulic Hosees)
Hose Recipe Safety Standard: EN 982-1996
Hose Recipe Assembly Instruction Reference: 1076838
Hose Recipe Version: 2
Hose Recipe Status: A
Hose Recipe Vendor: MANULI
Hose Recipe Grade: 1
Hose Part Hose Description: Eternity/2
Hose Part Hose Size DN: 10
Hose Part Hose Size Inch: 3/8"
Hose Part Hose Dash: -06
Hose Part Hose Pressure Class MPA: 36.5
Hose Part Hose Pressure Class PSI: 5293
Hose Part Hose Pressure Class BAR: 365
Hose Part Hose Standard ISO: ISO 11237 2SC
Hose Part Hose Standard SAE: SAE 100R16
Hose Part Hose Standard EN: EN 857 2SC
Hose Part Hose Standard MSHA: MSHA 2G-IC-126C/8-1
Hose Part Hose Structure: Wire braided two layer
Hose Part Hose Remark: High service life and reliability
Hose Part Hose Outer Diameter MM: 17
Hose Part Hose Outer Diameter INCH: 0.67
Hose Part Cancelled: N
Hose Part Vendor: MANULI
Hose Part Grade: 1
Hose Part In Program: Y
Catalog: 20099/924/400, 20099/924/500, 20643/660/150, 20105/660/150, 20105/660/100, 20644/660/100, 20615/924/500, 20643/660/100, 20103/660/100, 20615/924/425, 20615/924/400, 20645/660/100, 20137/924/400, 20729/660/100
Looking for Part NO.VOE938661(VOE11411696)?
We supply Kubota / KATO / Komatsu / MITSUBISHI / YANMAR / ISUZU aftermarket parts. You can get this part with wholesale price start from 1 pcs. Contact us get the best price.
VOE11411696 replacement for new Part NO.VOE938661

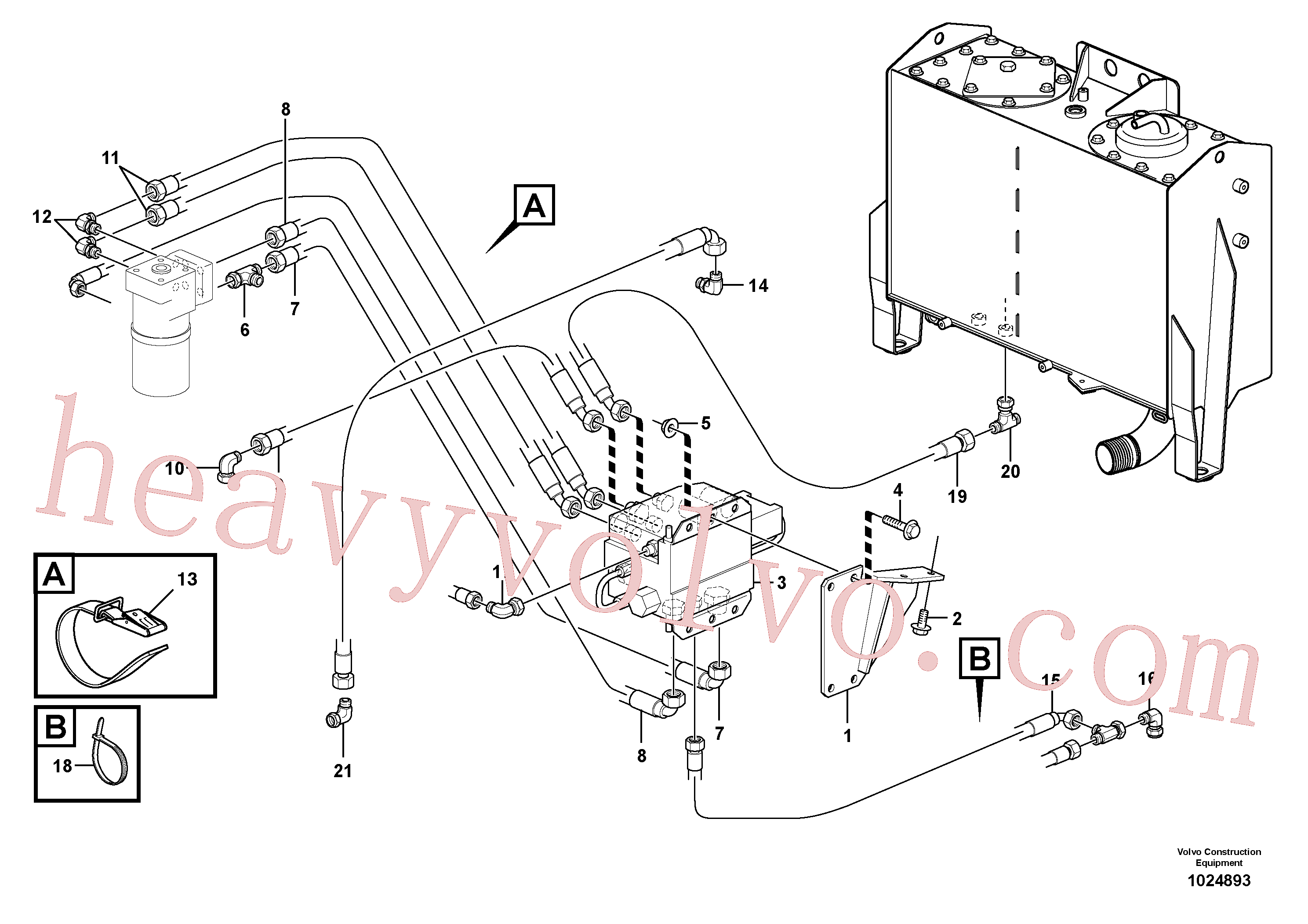

Volvo VOE938661 Eternity/2 suitable for 1024893 CDC - steering assembly.
Volvo VOE938661(c.1024893) Eternity/2
Ref: 1024893 / 19 / 1
VOE83256(VOE11716836) / U Comfort Drive Control, CDC
20103/660/100

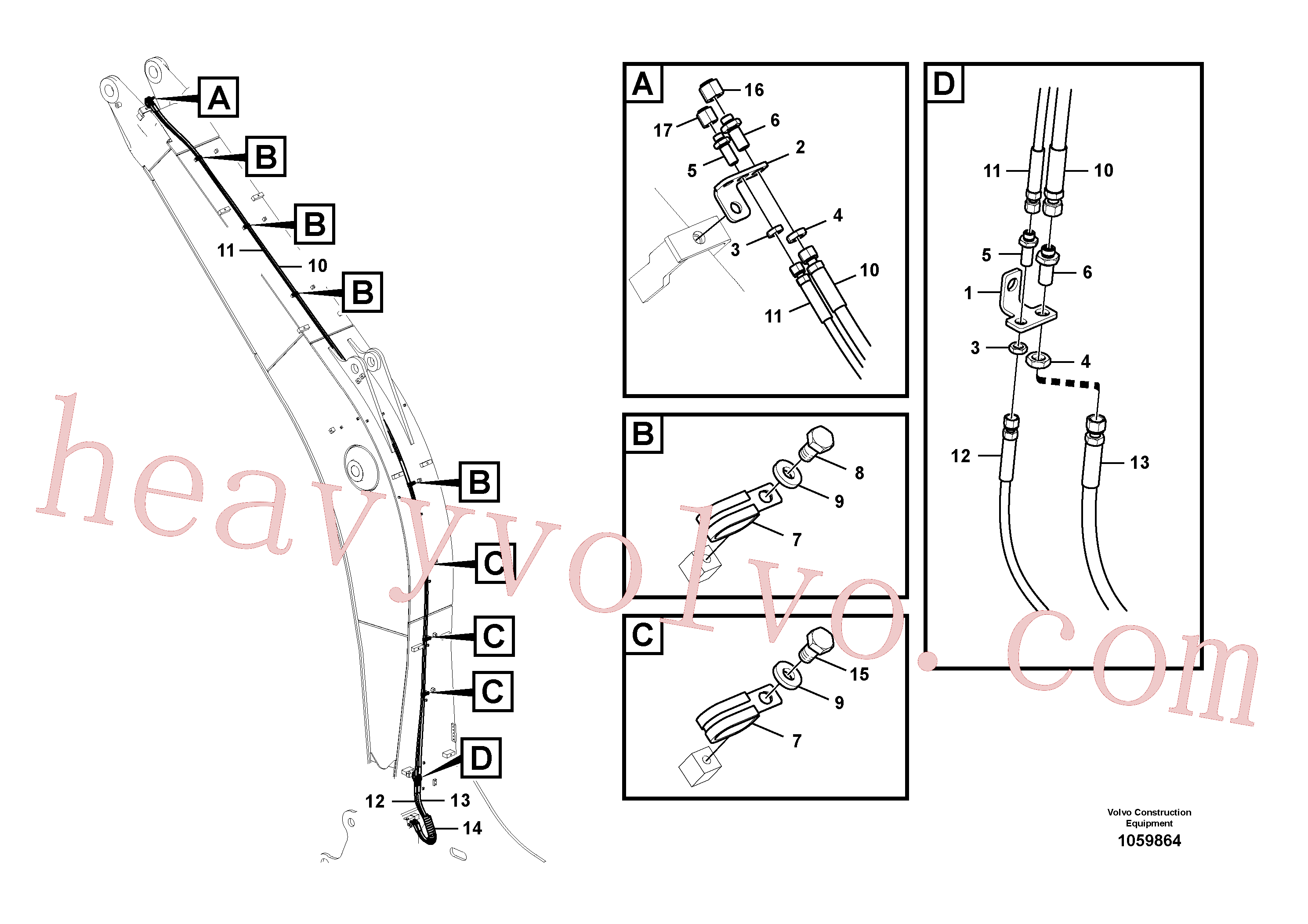

Volvo VOE938661 Hose assembly suitable for 1059864 Working hydraulic, quick fit on boom assembly.
Volvo VOE938661(c.1059864) Hose assembly
Ref: 1059864 / 13 / 1
VOE8287666(VOE14602672) / U / 6,0M Leak-off line for Quick fit equipment on boom
VOE8282385 / U / PLUS PARTS Pilot block piping
VOE8289850 / U / 5,7M Leak-off line for Quick fit equipment on boom
20615/924/400, 20629/924/400, 20630/924/400

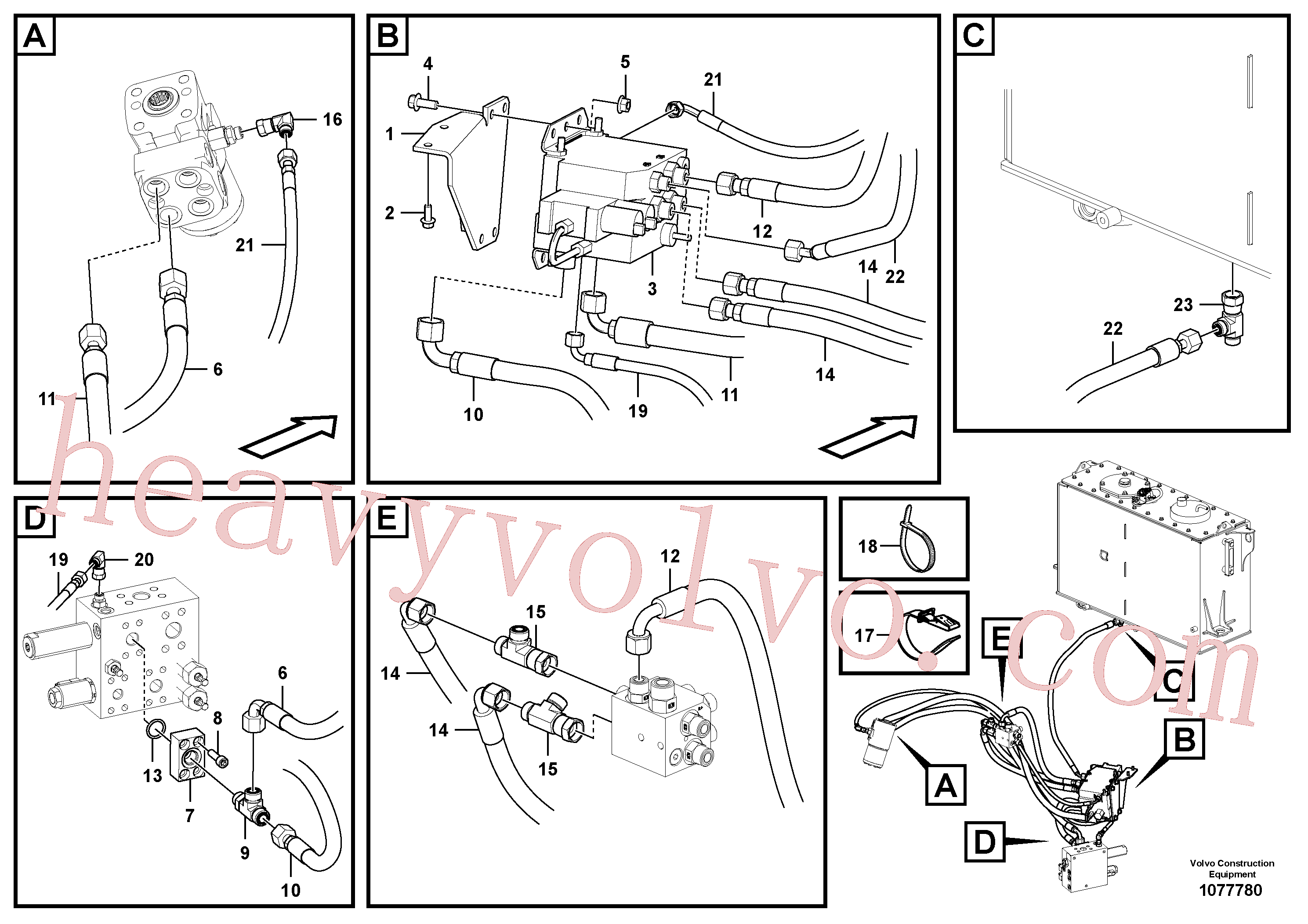

Volvo VOE938661 Eternity/2 suitable for 1077780 CDC - steering assembly.
Volvo VOE938661(c.1077780) Eternity/2
Ref: 1077780 / 22 / 1
VOE84745 / U Comfort Drive Control, CDC
VOE86050 / U Secondary steering
VOE87395 / U Comfort Drive Control, CDC
VOE87398 / U Comfort Drive Control, CDC
VOE87397 / U Comfort Drive Control, CDC
20643/660/150, 20727/660/100, 20729/660/100, 20728/660/100

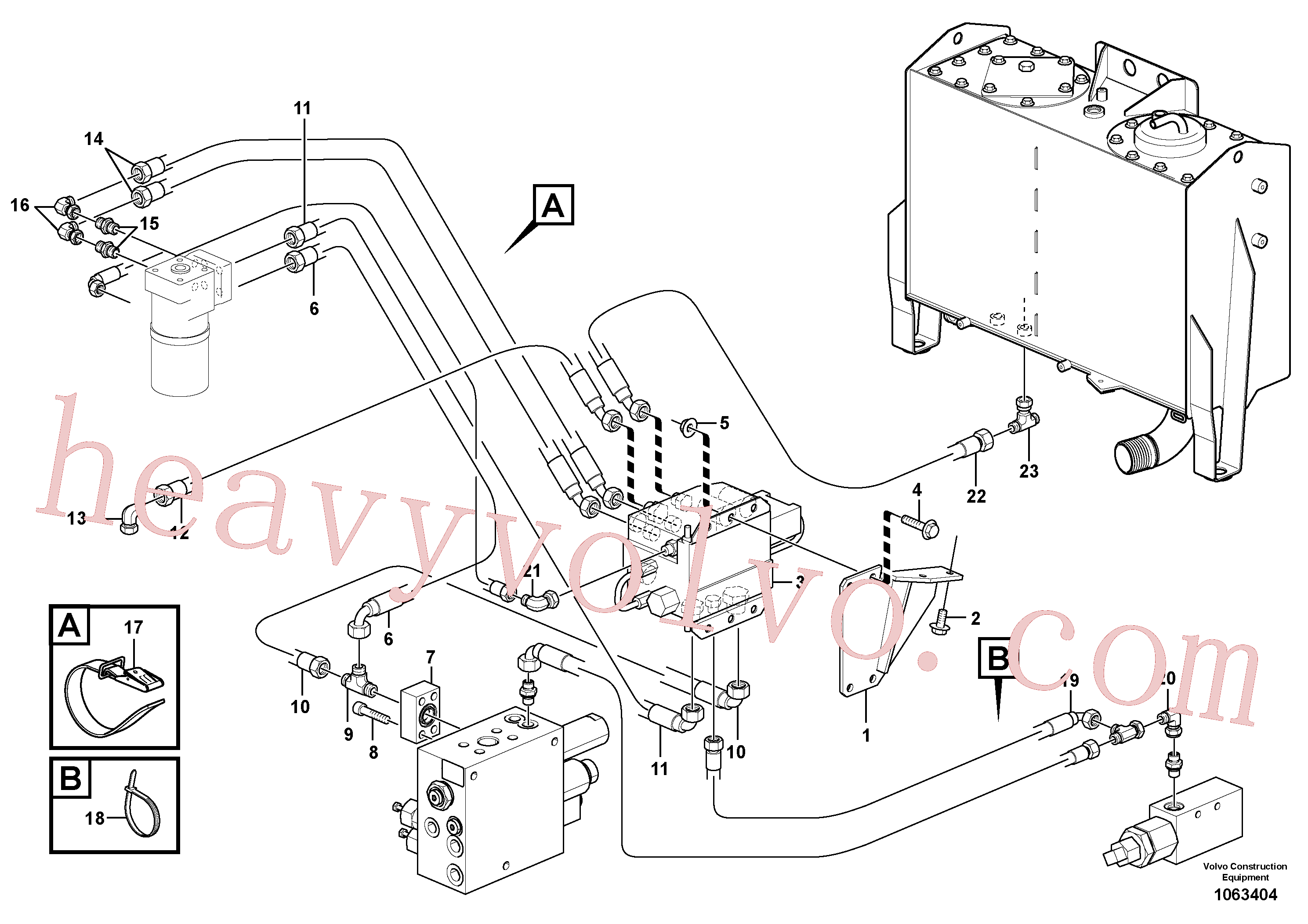

Volvo VOE938661 Hose assembly suitable for 1063404 CDC - steering assembly.
Volvo VOE938661(c.1063404) Eternity/2
Ref: 1063404 / 22 / 1
VOE84746 / U Comfort Drive Control, CDC
VOE84747 / U Comfort Drive Control, CDC
VOE84745 / U Comfort Drive Control, CDC
20644/660/100, 20645/660/100, 20643/660/100

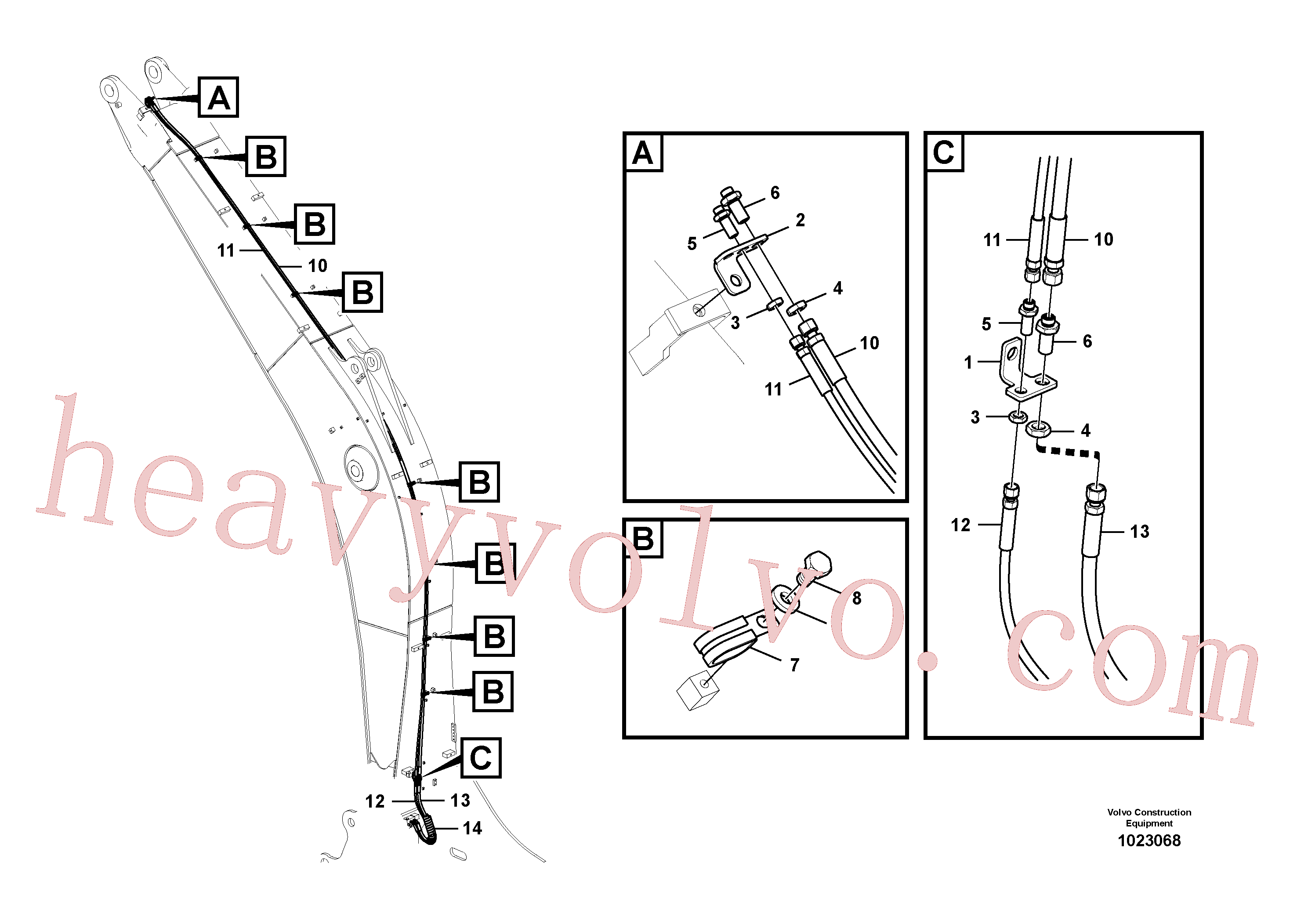

Volvo VOE938661 Hose assembly suitable for 1023068 Working hydraulic, quick fit on boom assembly.
Volvo VOE938661(c.1023068) Eternity/2
Ref: 1023068 / 13 / 1
VOE8286053(VOE14603594) / U / 6,2M Leak-off line for Quick fit equipment on boom
VOE8281014(VOE14564102) / U / 6,2M Leak-off line for Quick fit equipment on boom
VOE8283994 / U / 6,2M Leak-off line for Quick fit equipment on boom
20431/924/400, 20137/924/400, 20099/924/400
VOLVO Heavy Construction Equipment offer ISUZU / Komatsu / Doosan / Hitachi / CUMMINS / SAMSUNG spare parts. MOQ 1 pcs is available! VOLVO Part NO.VOE938661(VOE11411696) is on sale now!
Part VOE938661 suitable for:
VOE84986(VOE15170616) / U / L90F S/N 27170- SWE, 69016- USA, 71773- BRA Comfort Drive Control, CDC
VOE84589(VOE11716844) / U Comfort Drive Control, CDC
VOE83180(VOE11716838) / U Comfort Drive Control, CDC
VOE83874(VOE11716844) / U Comfort Drive Control, CDC
VOE8283996 / U Hydr. Quick fit equipment on adjustable boom
VOE8281122(VOE14564103) / U Hydr. Quick fit equipment on adjustable boom
VOE8289852 / U Hydr. Quick fit equipment on adjustable boom
VOE8279898(VOE14558184) / U Hydr. Quick fit equipment on adjustable boom
VOE8283970 / U Hydr. Quick fit equipment on adjustable boom
VOE8286359 / U Hydr. Quick fit equipment on adjustable boom
VOE8281015(VOE14564104) / U Hydr. Quick fit equipment on adjustable boom
VOE8283997 / U / UQF Hydr. Quick fit equipment on adjustable boom
VOE8289726 / U Hydr. Quick fit equipment on adjustable boom
VOE8292210 / U / 6,0M Leak-off line for Quick fit equipment on boom
VOE84608(VOE11716836) / U Comfort Drive Control, CDC
VOE84985(VOE15170616) / U / L70F S/N 25485- SWE, 62643- USA, 71749- BRA Comfort Drive Control, CDC
VOE84987(VOE15170614) / U / L60F S/N 5659- SWE, 61999- USA, 71224- BRA Comfort Drive Control, CDC
Part NO. VOE938661 for Volvo FC2924C(S/N 110001 - 110040)
This catalogue lists the spare parts for Excavator FC2924C.
BASIC MACHINE
PROD NO 8284166, FC2924C, SER NO ; 110001 - 110040
ENGINE
Part No. : 14527731, D7E EBE3 Emission-certified from EPA/EU
Part NO. VOE938661 for Volvo L60F
WHEEL LOADER VOLVO L60F
BASIC MACHINE
PROD NO 33761, S/N 4004 - 4006, 4007 - Sweden
PROD NO 33761, S/N 61401 - 62018
PROD NO 33761, S/N 70601 - Brazil
CAB
PROD NO 33762
PROD NO 33764 USA, 83932
PROD NO 33016 S/N 5449-, 61930-, 71063-
TRANSMISSION
PROD NO 22560, HTE110
DRIVING AXLE
PROD NO 23929, AWB 15, front, S/N - 5496, - 71062
PROD NO 56014, AWB 15, front, S/N 5497 -, 71063 -
PROD NO 23930, AWB 15, rear, S/N - 5496, - 71062
PROD NO 56015, AWB 15, rear, S/N 5497 -, 71063 -
PROD NO 23932, LSD, rear, S/N - 5496, - 71062
PROD NO 56016, LSD, rear, S/N 5497 -, 71063 -
LOADING UNIT
PROD NO 33751
ENGINE
Part No 11411086, Type VOLVO D6ELCE3
Part NO. VOE938661 for Volvo EC290C(S/N 110001 - 111856)
This catalogue lists the spare parts for Excavator EC290C
BASIC MACHINE
PROD NO 8280940, EC290C, SER NO ; 110001 - 111856
ENGINE
Part No. 14527732, D7E Emission Certified from EPA/EU
Part NO. VOE938661 for Volvo EC250E(S/N 310001-, 320001-)
EXCAVATOR VOLVO EC250E
BASIC MACHINE
Product number 8294127, Serial number 310001-, 320001-
CAB
Product number 8292998
Product number 8294134
Product number 8295278
Product number 8295279
Product number 8302184
Product number 8302185
Product number 8302186
Product number 8302187
ENGINE
Replacement version 17211950
Replacement version 17211952
Replacement version 17480998, D8J T4F
Replacement version 17507022, D8J T4F
Replacement version 17668815, D8 STAGE V
Part NO. VOE938661 for Volvo L90H
WHEEL LOADER VOLVO L90H
BASIC MACHINE
Product number 33057, Serial number 623002- USA
Product number 33057, Serial number 13011- Sweden
CAB
Product number 11294116
DRIVE AXLES
Part number 56008, front
Part number 86345, rear
Part number 86344, rear, Limited slip Diff LSD
TRANSMISSION
Product number 22579 HTE125
Product number 22721 HTL125
Product number 22730 HTE125C
LOADER UNIT
Product number 33035, LUB
Product number 33034, LB LUB
Product number 33067, LUB
Product number 33066, LB LUB
ENGINE
Product number 17211898, Replacement version 85857, T4F USA
Product number 17211900, Replacement version 85858, T4F EU
Product number 17479895, T4F USA
Product number 17479896, T4F EU
Product number 17507019, D6J T4F
Product number 17668827, D6 STAGE V
Part NO. VOE938661 for Volvo L60G
WHEEL LOADER VOLVO L60G
BASIC MACHINE
PROD NO 33005, S/N 1009 - Sweden
PROD NO 33005, S/N 611001 - USA
CAB
PROD NO 11294043
TRANSMISSION
PROD NO 22579, HTE125
DRIVING AXLE
PROD NO 56014, AWB 15, front
PROD NO 56056, AWB 15, rear
PROD NO 56055, rear, Limited slip Diff LSD
LOADING UNIT
PROD NO 33031
ENGINE
PART NO. 15165675, Type D6H, EU
PART NO. 15083685, Type D6H, US
We have our own production/R&D factory, high quality and low price are our advantages.
With more than 10 years of machinery industry experience, we have received praise from all over the world (customer / reseller / manufacturers / distributors).
Original VOE938661(VOE11411696) included regular invoice.
Used/Second hand VOE938661 provide 3-12 months quality guarantee .
All Taxes included, no more hidden fee.
Choose us, get permanent online support, our Golden Engineers are ready.
