Volvo EW230B(SER NO 1736-) excavator spare part VOE14055011 Hydraulic hose
Part Name: VOE14055011 Hydraulic hose
KDSORT: 120, 140, 8001, 380, 8002, 250, 590, 110, 310
UE: U
NS_SS: OP
ANT1: 1
Hose Recipe Asmoverall Length MM: 2225
Hose Recipe Asmoverall Length Inch: 87.60
Hose Recipe Asmoverall Length ToL MM: +/- 1%
Hose Recipe Asmoverall Length ToL inch: +/- 1%
Hose Recipe Fitting OrIentationtol Tol Degrees: +/- 5 degrees
Hose Recipe Hydraulic Hose Standard: EN (474-1) (5.18.13 Hydraulic Hosees)
Hose Recipe Safety Standard: EN 982-1996
Hose Recipe Assembly Instruction Reference: 1076838
Hose Recipe Version: 1
Hose Recipe Status: A
Hose Recipe Vendor: MANULI
Hose Recipe Grade: 1
Hose Part Hose Description: Xtraflex/5000
Hose Part Hose Size DN: 25
Hose Part Hose Size Inch: 1"
Hose Part Hose Dash: -16
Hose Part Hose Pressure Class MPA: 35.0
Hose Part Hose Pressure Class PSI: 5075
Hose Part Hose Pressure Class BAR: 350
Hose Part Hose Standard ISO: ISO 18752-C
Hose Part Hose Standard SAE: Volvo 106
Hose Part Hose Standard EN: Volvo 106
Hose Part Hose Standard MSHA: MSHA 2G-IC-126C/8-1
Hose Part Hose Structure: Wire spiralled four layer
Hose Part Hose Remark: Extreme flexibility
Hose Part Hose Outer Diameter MM: 39
Hose Part Hose Outer Diameter INCH: 1.54
Hose Part Cancelled: N
Hose Part Vendor: MANULI
Hose Part Grade: 1
Hose Part In Program: Y
Catalog: 99506/911/1500, 99534/911/800, 99506/911/1350, 99532/911/1500, 99533/911/1500, 99532/911/1350, 99505/911/1350, 99501/7/310, 99535/911/750, 99502/7/310, 99533/911/1350, 99509/911/750, 99513/916/400, 99505/911/1500
Looking for Part NO.VOE14055011?
We offer Caterpillar / CUMMINS / Doosan / CASE / Deutz / SUMITOMO aftermarket parts. You can get this part with wholesale price start from 1 pcs. Contact us get the best price.

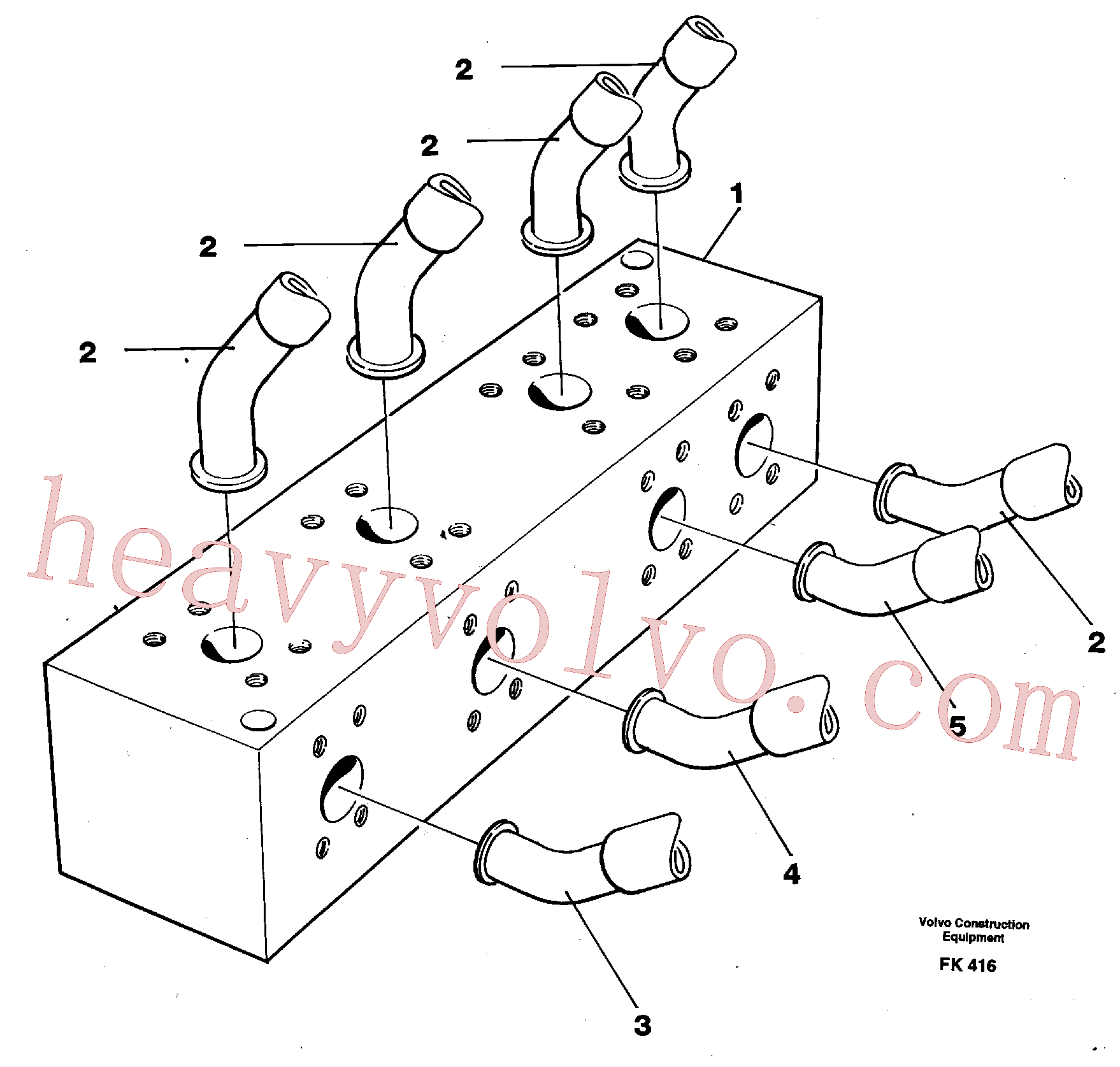

Volvo VOE14055011 Hydraulic hose suitable for FK416 Connection block with hoses assembly.
Volvo VOE14055011(c.FK416) Hydraulic hose
Ref: FK416 / 3 / 1
99505/911/1500

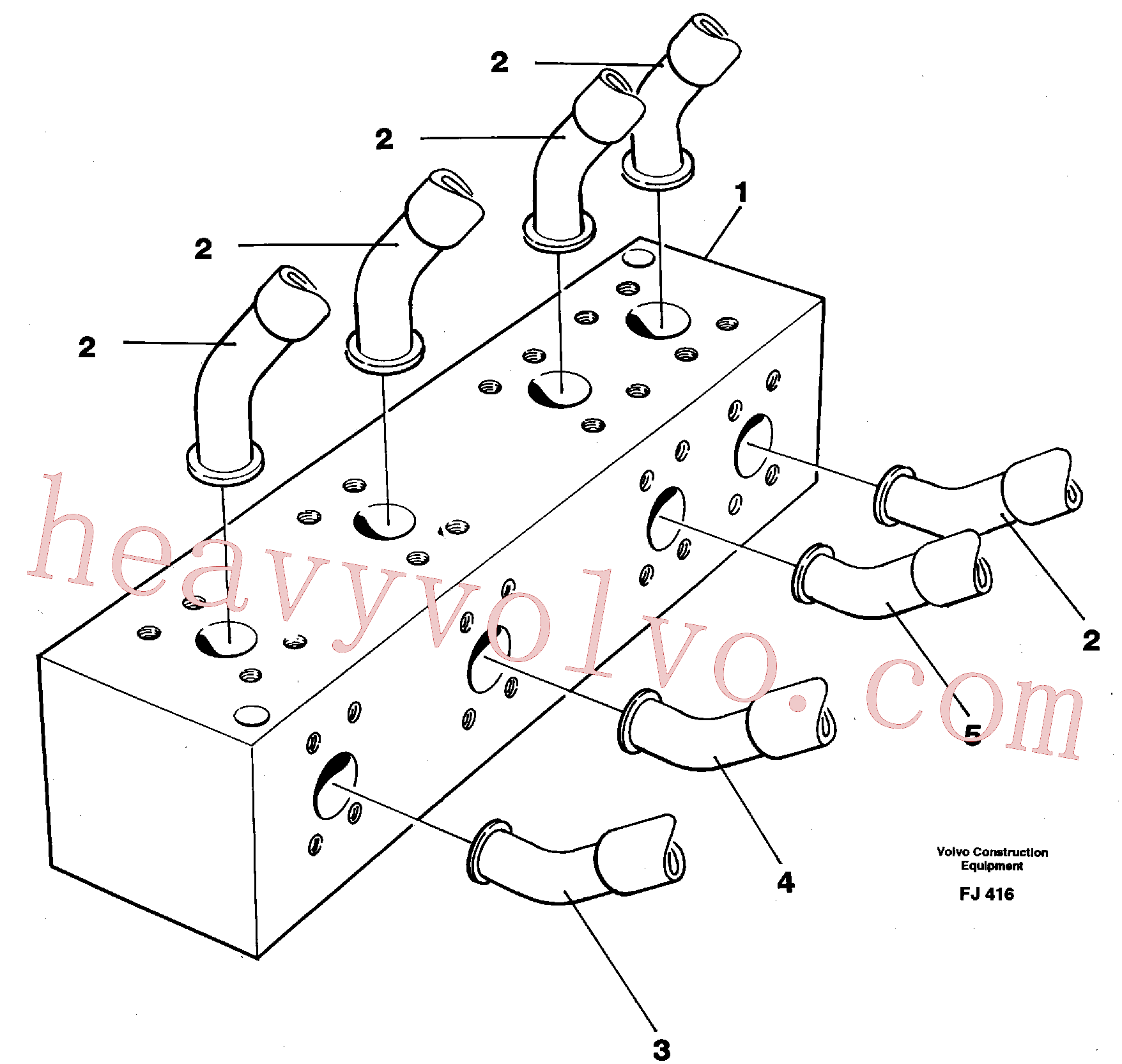

Volvo VOE14055011 Hydraulic hose suitable for FJ416 Connection block with hoses assembly.
Volvo VOE14055011(c.FJ416) Hydraulic hose
Ref: FJ416 / 3 / 1
99506/911/1500

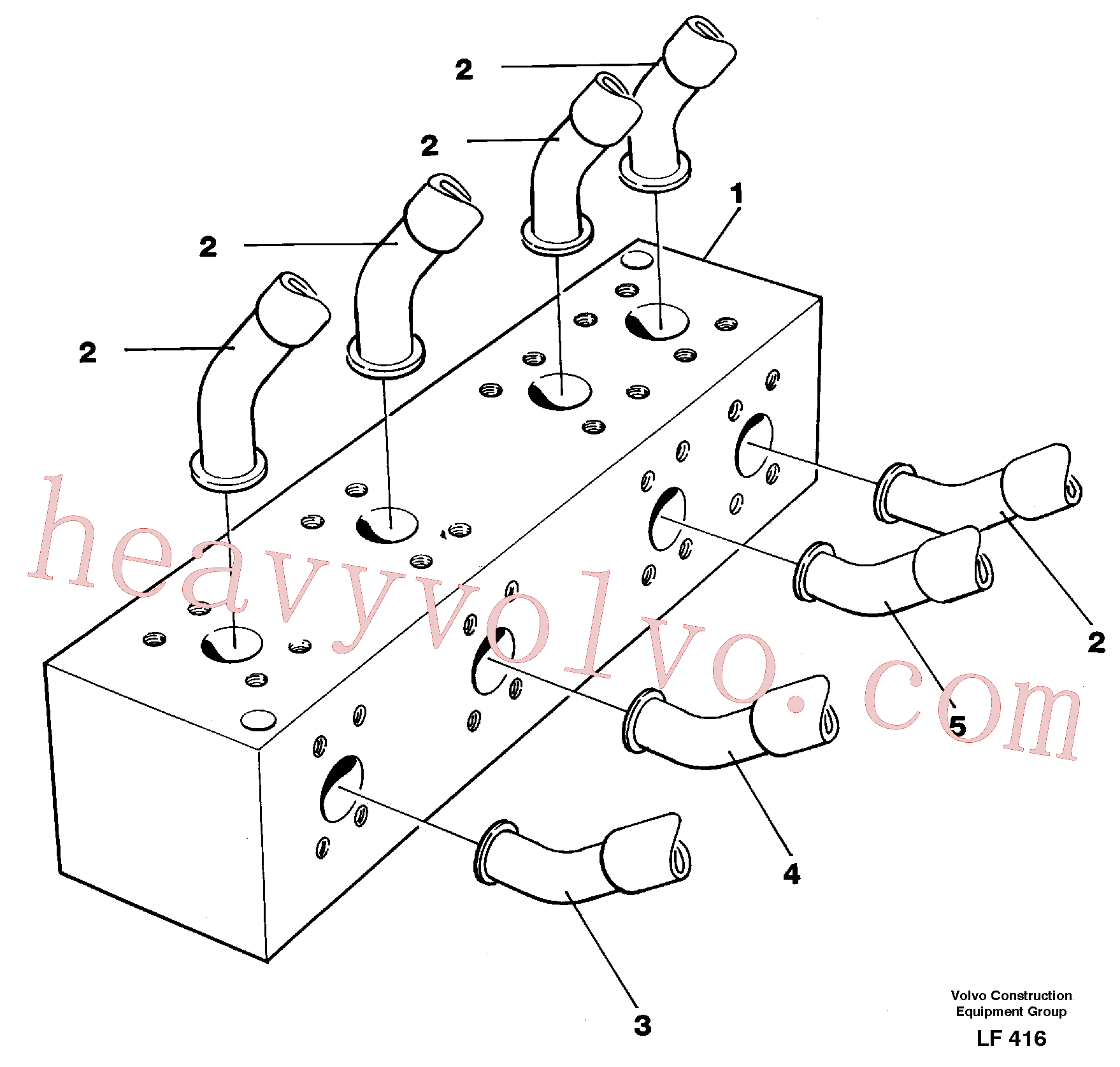

Volvo VOE14055011 Xtraflex/5000 suitable for LF416 Connection block with hoses assembly.
Volvo VOE14055011(c.LF416) Hydraulic hose
Ref: LF416 / 3 / 1
99532/911/1500

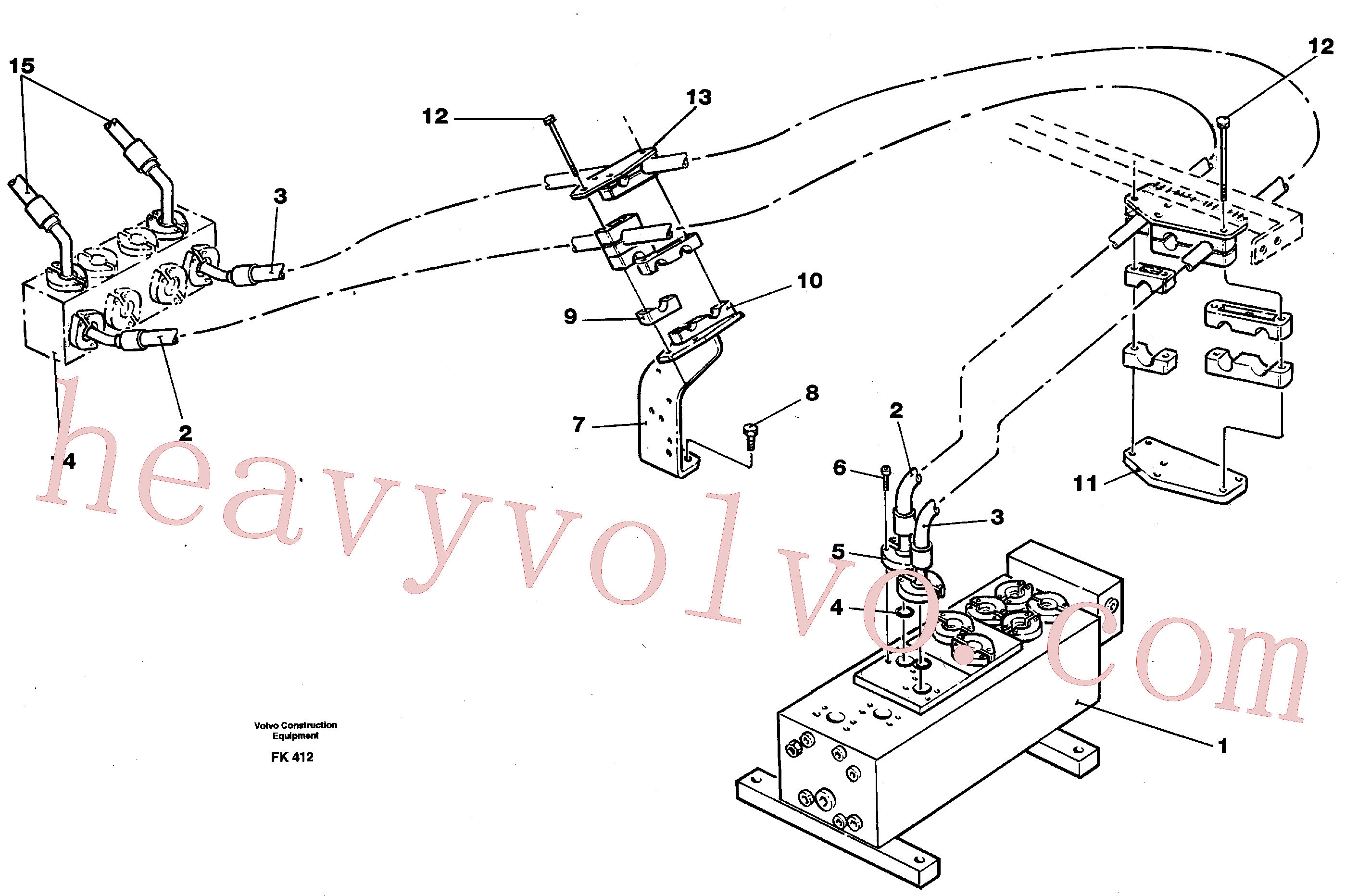

Volvo VOE14055011 Xtraflex/5000 suitable for FK412 Hydraulic system, bucket assembly.
Volvo VOE14055011(c.FK412) Xtraflex/5000
Ref: FK412 / 2 / 1
99505/911/1350
Volvo VOE14055011 Xtraflex/5000 suitable for LG412 Hydraulic system, bucket assembly.
Volvo VOE14055011(c.LG412) Hydraulic hose
Ref: LG412 / 2 / 1
99533/911/1350
VOLVO Heavy Construction Equipment offer Caterpillar / HYUNDAI / Deutz / SUMITOMO / Hitachi / Komatsu spare parts. MOQ 1 pcs is available! Volvo Part NO.VOE14055011 is on sale now!
Part NO. VOE14055011 for Volvo EW200 ÅKERMAN(ÅKERMAN EW200)
EXCAVATOR EW200
BASIC MACHINE
PROD NO 14256783 EW200, SER NO 2401 -
PROD NO 14301057,EW200 Support blade
CAB
PROD NO 14244000
ENGINE
Part No. 497038 Type TD 61 GE
Part No. 8188109, Type TD 63 KHE
Part NO. VOE14055011 for Volvo EC200(SER NO 2760-)
EXCAVATOR EC200
BASIC MACHINE
PROD NO 14256792 EC200, SER NO 2760 -
CAB
PROD NO 14244000
ENGINE
Part No. 8188109, Type TD 63 KHE
Part NO. VOE14055011 for Volvo EC200 ÅKERMAN(ÅKERMAN EC200)
EXCAVATOR EC200
BASIC MACHINE
PROD NO 14256792 EC200, SER NO 2101 -
CAB
PROD NO 14244000
ENGINE
Part No. 497038 Type TD 61 GE
Part No. 8188109, Type TD 63 KHE
Part NO. VOE14055011 for Volvo EW230 ÅKERMAN(ÅKERMAN EW230 SER NO - 1447)
EXCAVATOR EW230
BASIC MACHINE
SER NO 1369 - 1447
ENGINE
TD 61 ACE, SER NO - 1404
TD 61 GE, SER NO 1405 -
Part NO. VOE14055011 for Volvo EC230B(SER NO 5252-)
EXCAVATOR EC230B
BASIC MACHINE
PROD NO 14260269 EC230B, SER NO 5252 -
CAB
PROD NO 14244000
ENGINE
Part No. 8188110, Type TD 63 KIE
Part NO. VOE14055011 for Volvo EW200(SER NO 3175-)
EXCAVATOR EW200
BASIC MACHINE
PROD NO 14256783 EW200, SER NO 3175 -
PROD NO 14301057, EW200 Support blade
CAB
PROD NO 14244000
ENGINE
Part No. 8188109, Type TD 63 KHE
